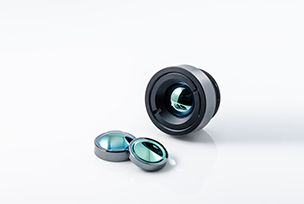

Molded LWIR Lens FL 15mm f/1.0 (Model VN1510)

Catal_VN1510

• Precision molded LWIR lenses using chalcogenide glass
  • - High-volume, cost effective manufacturing
  • - Optimized for the 8~12 um wavelength range
• High performance LWIR lenses
  • - FL 15 mm, f/1.0 lens
  • - Use of diffractive‐aspheric lens
  • - Ultralight, wide‐angle, passively athermalized LWIR lens
• Suitable for use with VGA and qVGA detectors and smaller
• Applications and capabilities
  • - Thermal imaging and thermography
  • - Automotive vision enhancement

Optical specifications

• Focal length15.0 mm
• Aperture-based f-numberf/1.03
• Maximum image circle8.16 mm
• Waveband8~12 um
• Focus range1.7 m to infinity
• Transmittance> 95 % (AR coating)
• > 90 % (DLC coating)
• Field of view (FOV)

  Sensor array	Pixel size(um)	FOV (deg)
  		H	V	D
  640 x 480	12	29.5	22.0	37.3
  384 x 288	17	25.0	18.7	31.4
  	12	17.6	13.2	22.0
  320 x 240	17	20.8	15.6	26.1
  	12	14.7	11	18.4

  Note : Each lens is optimized for a specific detector format represented by bold values.
  This table shows values for other compatible detector formats with non‐optimal performance.
